Description
● Mobile lift, easily moves around after use.
● 2500KG rated lifting capacity covers most vehicles.
● Just press up/down button to operate the lift, instead of pulling safety lock release handle and lowering valve handle.

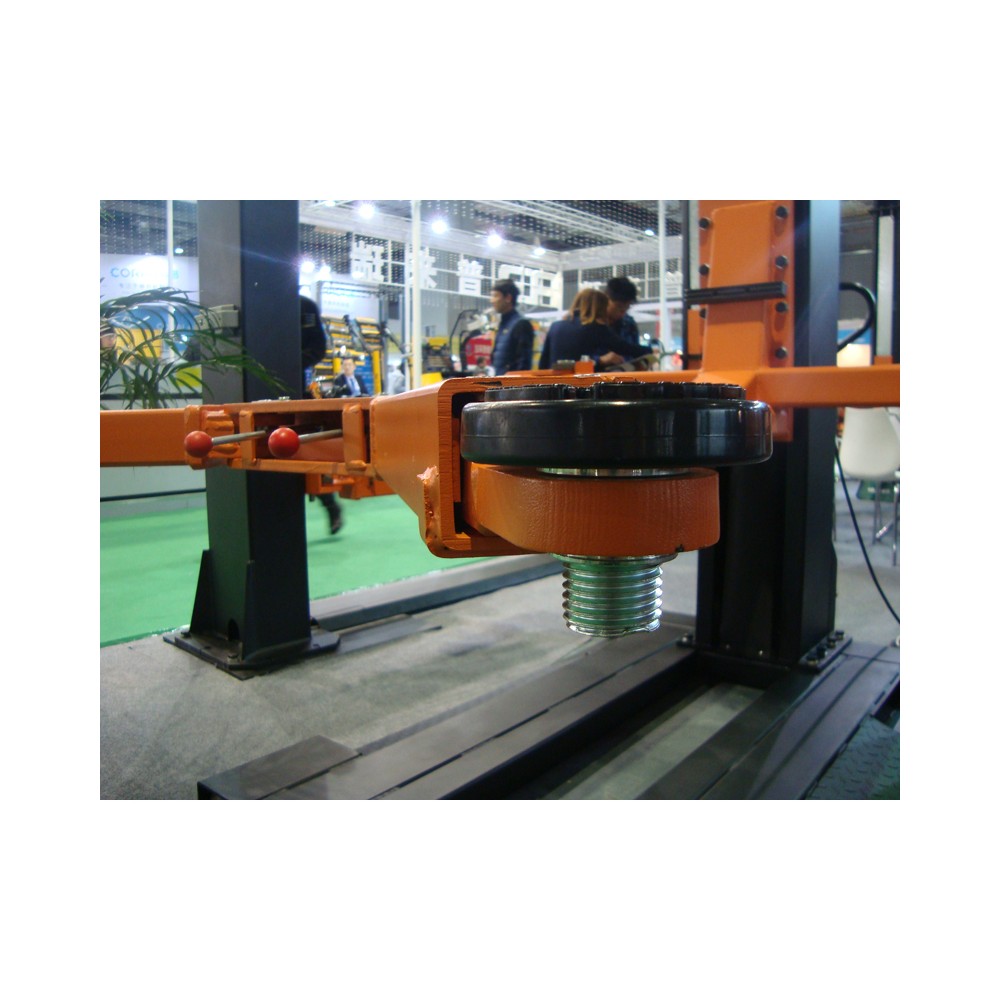

● Screw-up pads design makes so easy and quick contact with vehicles’ pickup points.
● 24V control system matches CE standard.
● Aluminum motor prevents overheating.
● Anti-surge valve that equipped in hydraulic joint ensures no danger in case of oil hose broken.
● Reliable cylinder, chromed-plating honed tube and piston rod, provides a long service life.
Data sheet
Data sheet
Model name | IT8812 |
Lifting capacity | 2500KG |
Net weight | 810KG |
Lifting time | 55s |
Max lifting height | 1915mm |
Post height | 2510mm |
Min height | 110mm |
Capacity of motor | 2.2KW |
Power supply | 110/220/380V, 50/60Hz |
