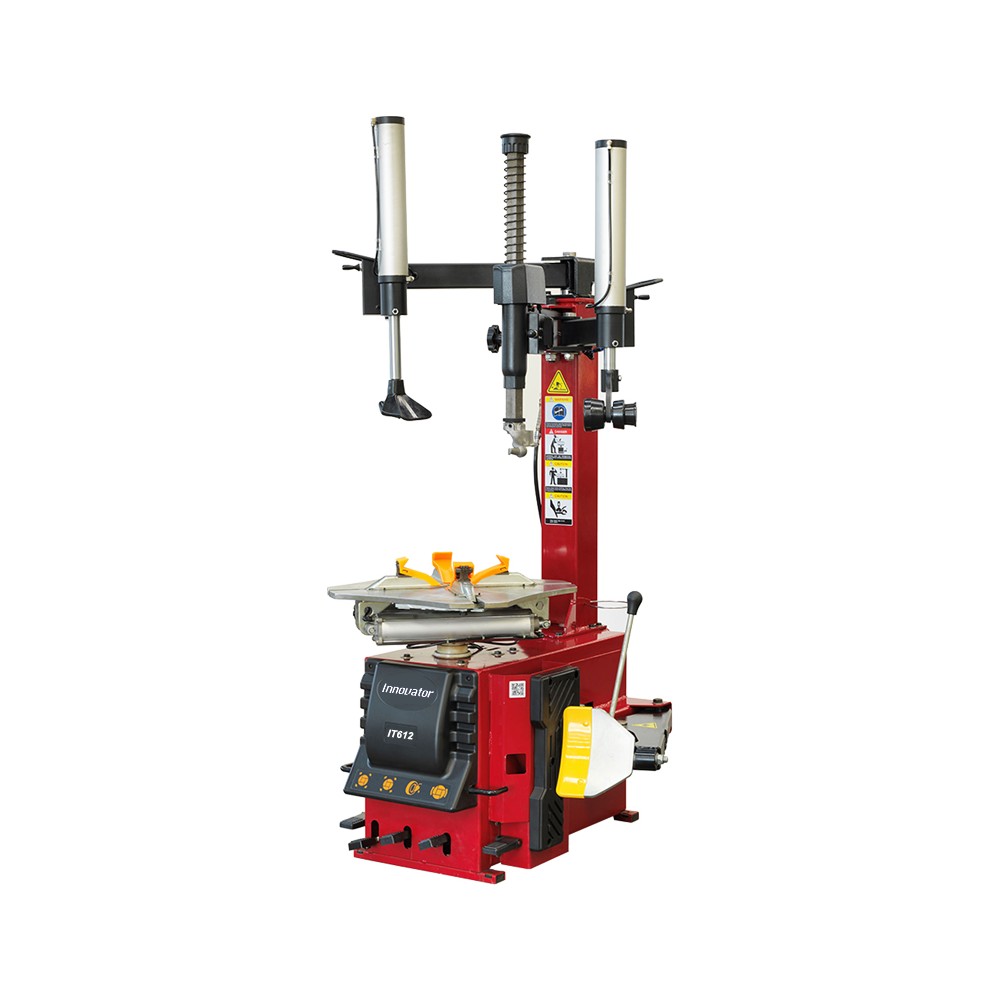

Tire Changer IT612

More info

Description

● The higher position installed help arms design allowing a more flexible operation;

● Available to lock the arm at any position that needs;

● Adopt rugged & durable one piece casting jaws;

● Adjustable pressing shovel helps to press tyre with less effort;

● Self-centering four-jaw turntable controlled via two clamping cylinders for correct clamping of the wheel.

Data sheet

Data sheet

Model name IT612
Motor power 1.1/0.75kw
Max wheel diameter 41”(1040mm)
Max wheel width 14”(355mm)
Outside clamping 10”~21”
Inside clamping 12”~24”
Air supply 8-10bar
Bead breaker force 2500kg
Power supply 110/220/380V, 50/60Hz
Net weight / Gross weight 258/288kg
Packing dimension 1080*900*960mm
