Description
● 3200/4000kg lifting capacity;
● Its base plate design demands less storey height;
● Manual mechanical lock release system;
● Chain lifting system combined with dual hydraulic cylinders;
● The 24V ABS control box and limit switch consider your safety operation;
● Feet protection bar and door opening protection rubber pad effectively avoid unexpected injuries and damages;
● With height adapters for servicing light-duty trucks;
● Reserved hand pump joint on hydraulic block for emergency lowering;
● Over loading can be perfectly avoided due to the pre-fixed hydraulic pressure;
● It has been proofed by dynamic test with 115% of rated capacity and static test with 150% of rated capacity;
● CE certificated.
Data sheet
Data sheet

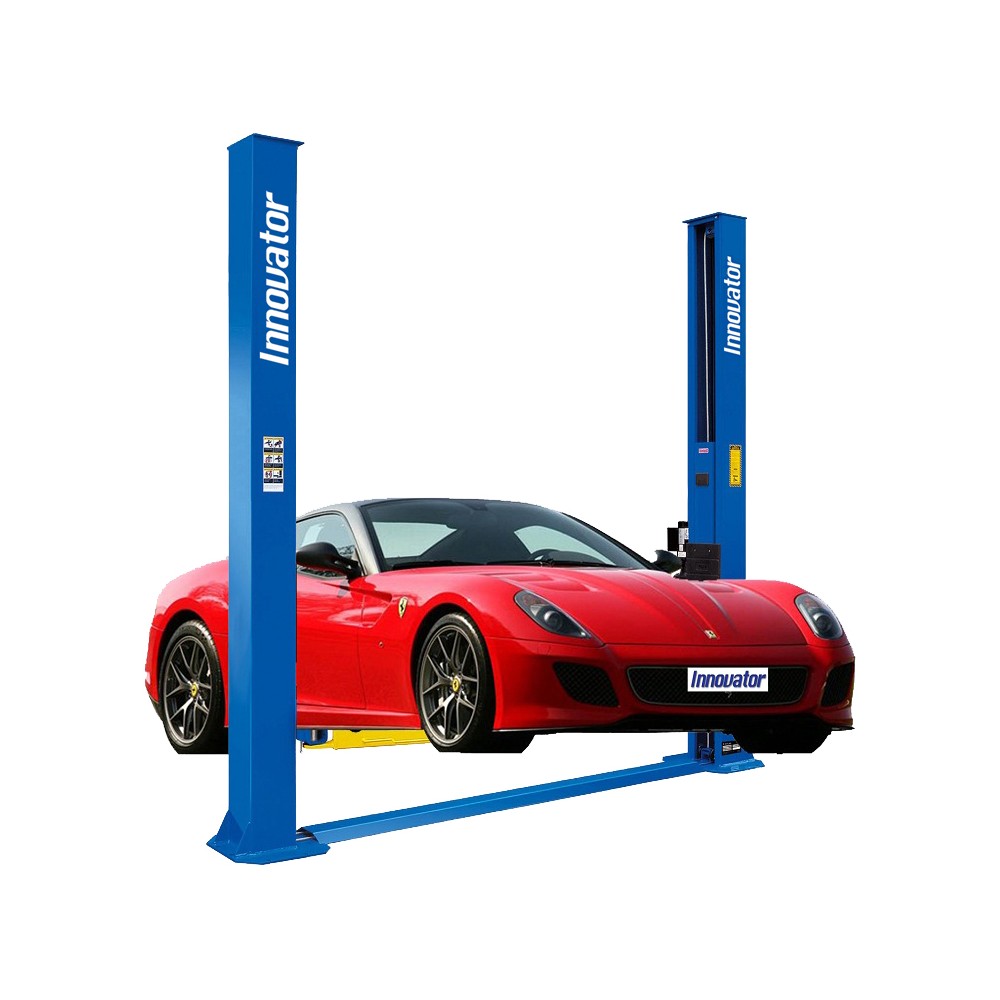

Model name | IT8213 / IT8214 |
Lifting capacity | 3200KG / 4000KG |
Net weight | 650KG / 700KG |
Max lifting height | 1900mm |
Min pad height | 100mm |
Overall height | 2904mm |
Overall width | 3470mm |
Capacity of motor | 2.2KW |
Power supply | 110/220/380V, 50/60Hz |
